4.1. Round Column Formwork
For round concrete columns in facing concrete quality- Formwork made easy; the two formwork halves are obliged to form a perfect joint by dint of centring pins
- Quick-locking mechanism with a Ø 15 mm D&W coarse thread and wing nut
- Continuous rubber sealing at the longitudinal joint prevents leakage
- New longitudinal profile enables panel formwork for oval supports to be connected up without special parts
- Concreting platform with side safety barrier fits all formwork diameters without tiresome adjustment work
- To rent – diameters beginning with 250 mm 1200 mm and on request
- Length gradations in 50 cm steps
- Concrete pressure max. 120 kN/m²
- Special formwork and any intermediate sizes required can be manufactured on request to the sales department

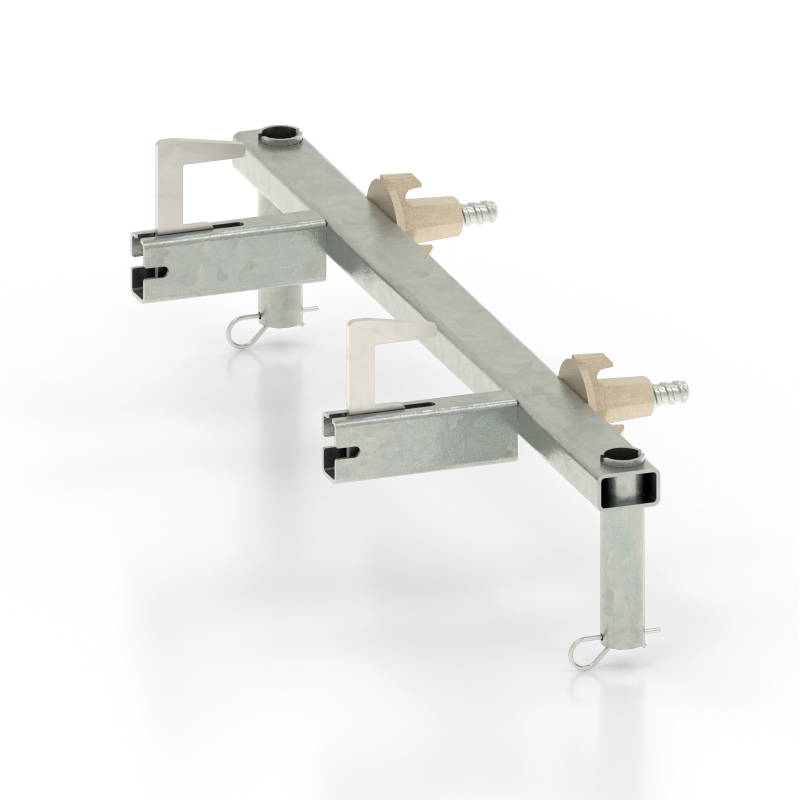

Ladder bracket for working platform on round column formwork
for connecting the STAFE steep staircase
Product no.: 353001
Weight: 6,50 kg
Packaging unit: 1,00 pieces
Fitting products:
17 steps L=5900 mm, with handrail, height-adjustable
6 additional railing frames required, galvanised
