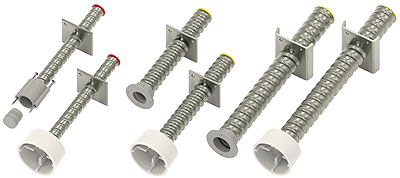

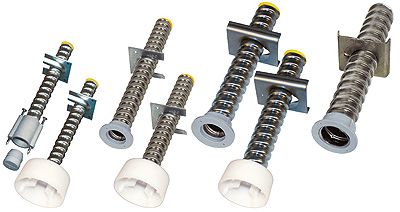

1.1. Anchoring Systems for different fixing purposes

  • csm_EinbausaetzeProven a million times over
  • Inexpensive, non-recoverable installation parts
  • Universal system for fixing anchor tie bars for formwork and bolts for fastening and transportation purposes
  • Can be installed in floors, foundation slabs and walls
  • For in-situ concrete and construction with precast components
  • 4 different anchor diameters available from Ø 15.0 mm to Ø 36.0 mm in conformity with the Dywidag formwork anchoring system
  • Larger Ø 50 and Ø 60 mm sizes can be supplied with special bolts for transporting tunnel segments
  • Anchor sleeve lengths (infinitely variable) tailored to structural dimensions
  • Permissible service loads from 5.0 kN to 60.0 kN
  • Comprehensive selection of hexagonal and transport bolts
